CSAPP 01.1 - Information Is Bits + Context - Byte Context Simulator
"All information in a system is represented as a bunch of bits. The only thing that distinguishes different data objects is the context in which we view them."
— CS:APP (Computer Systems: A Programmer's Perspective), Section 1.1
⚙️ Overview

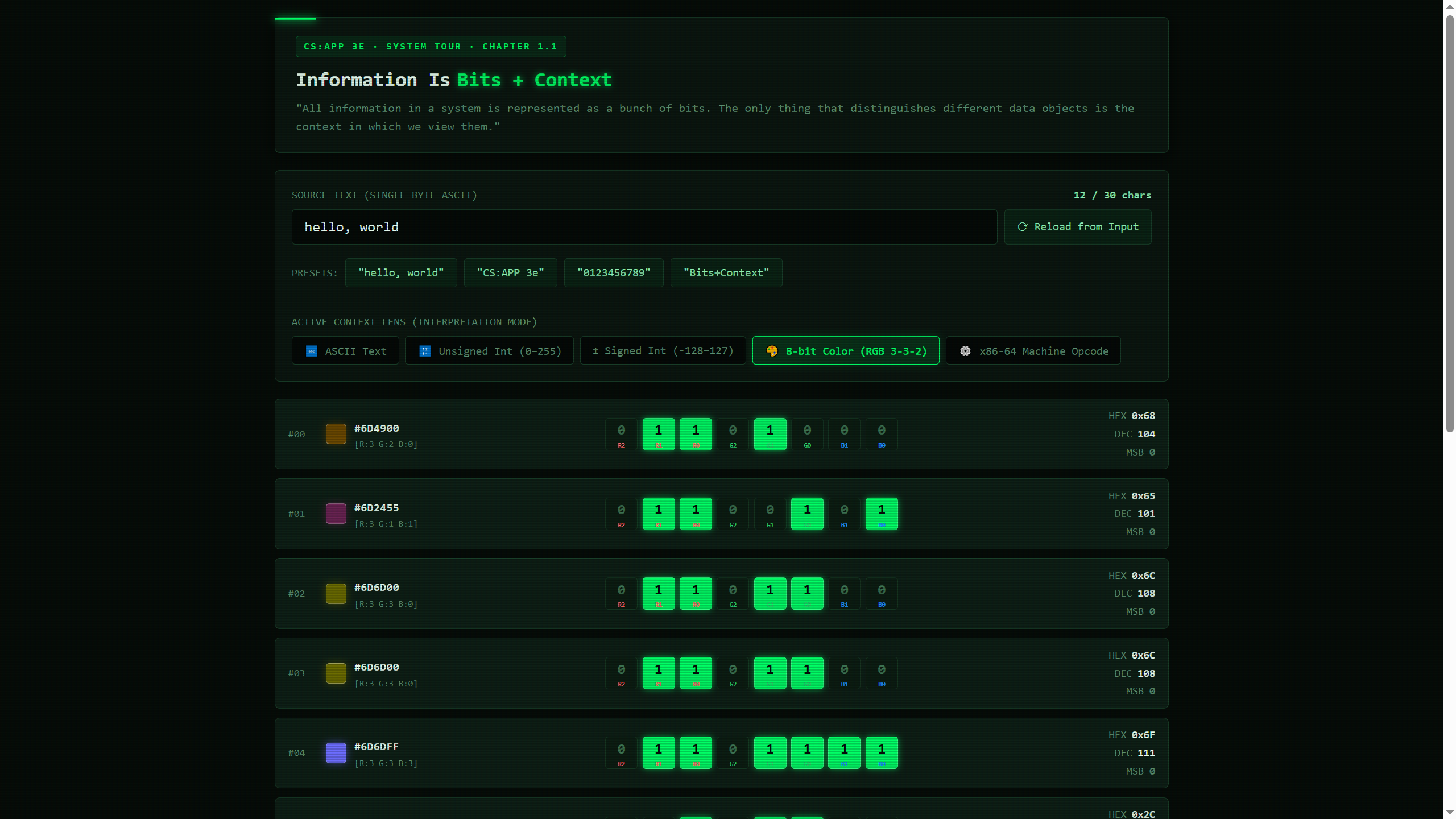

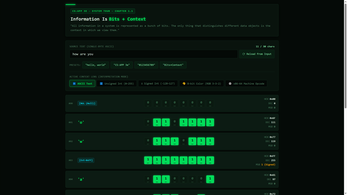

This interactive byte simulator demonstrates the core principle of computer systems: Information is Bits + Context. It inspects how a single 8-bit binary sequence represents distinct data types across different system decoding rules in real time.
🔬 The 5 Context Interpretation Lenses

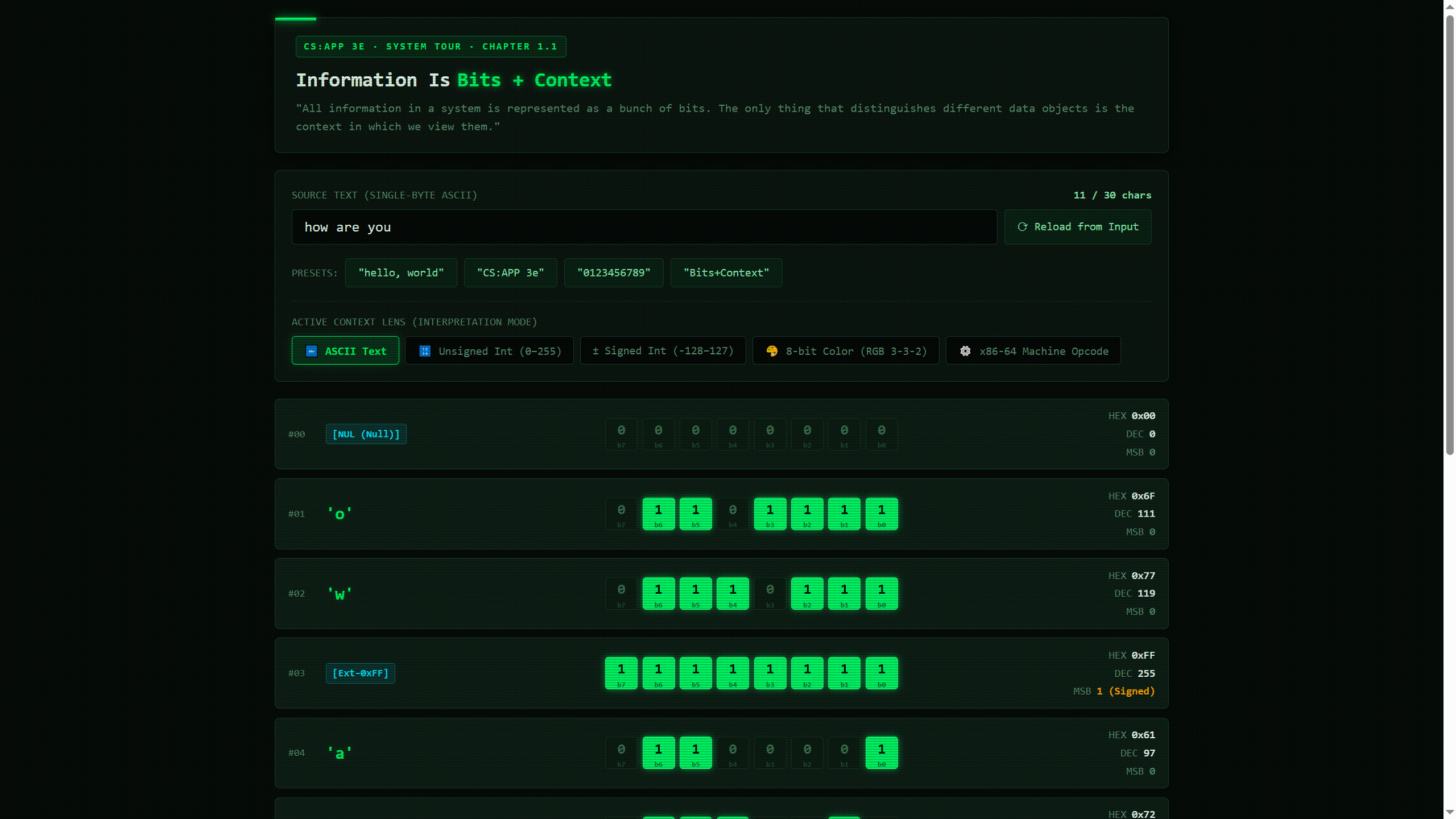

- ASCII Text (Char Encoding): Maps byte values to human-readable characters, printable glyphs, and fundamental control characters (such as
NUL,TAB,LF, andCR). - Unsigned Integer (0–255): Interprets raw binary bits as pure positive numeric magnitudes using direct positional base-2 arithmetic.
- Signed Integer (-128–127): Demonstrates hardware Two's Complement arithmetic, revealing how the Most Significant Bit (MSB,

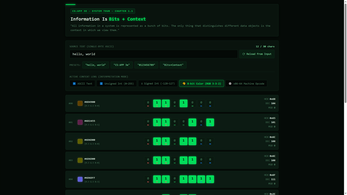

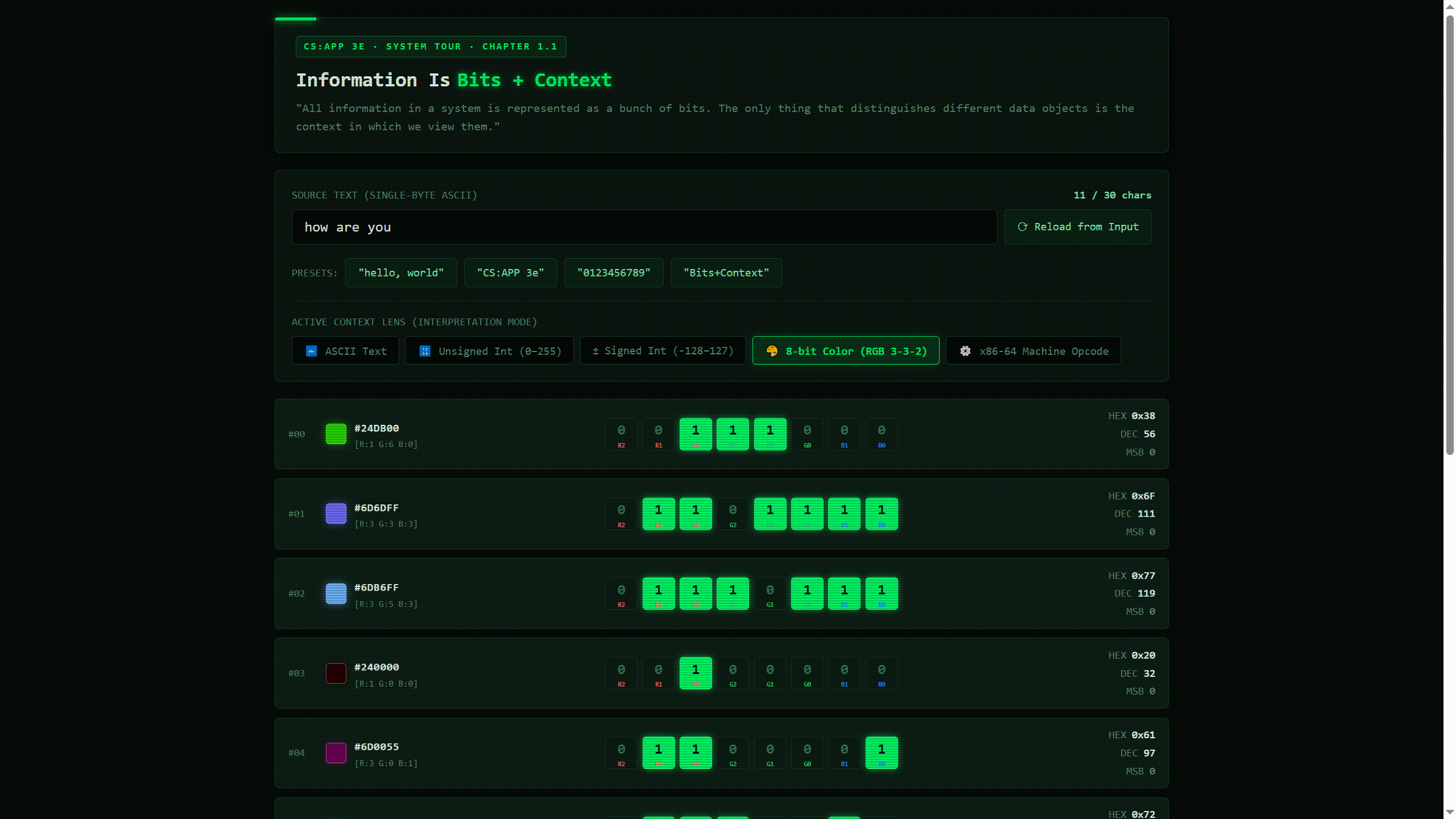

b7) acts as the sign flag. - 8-bit Color (RGB 3-3-2): Decodes a single byte directly into a pixel color via hardware channel slicing (3 bits Red, 3 bits Green, 2 bits Blue) with live hex swatch rendering.

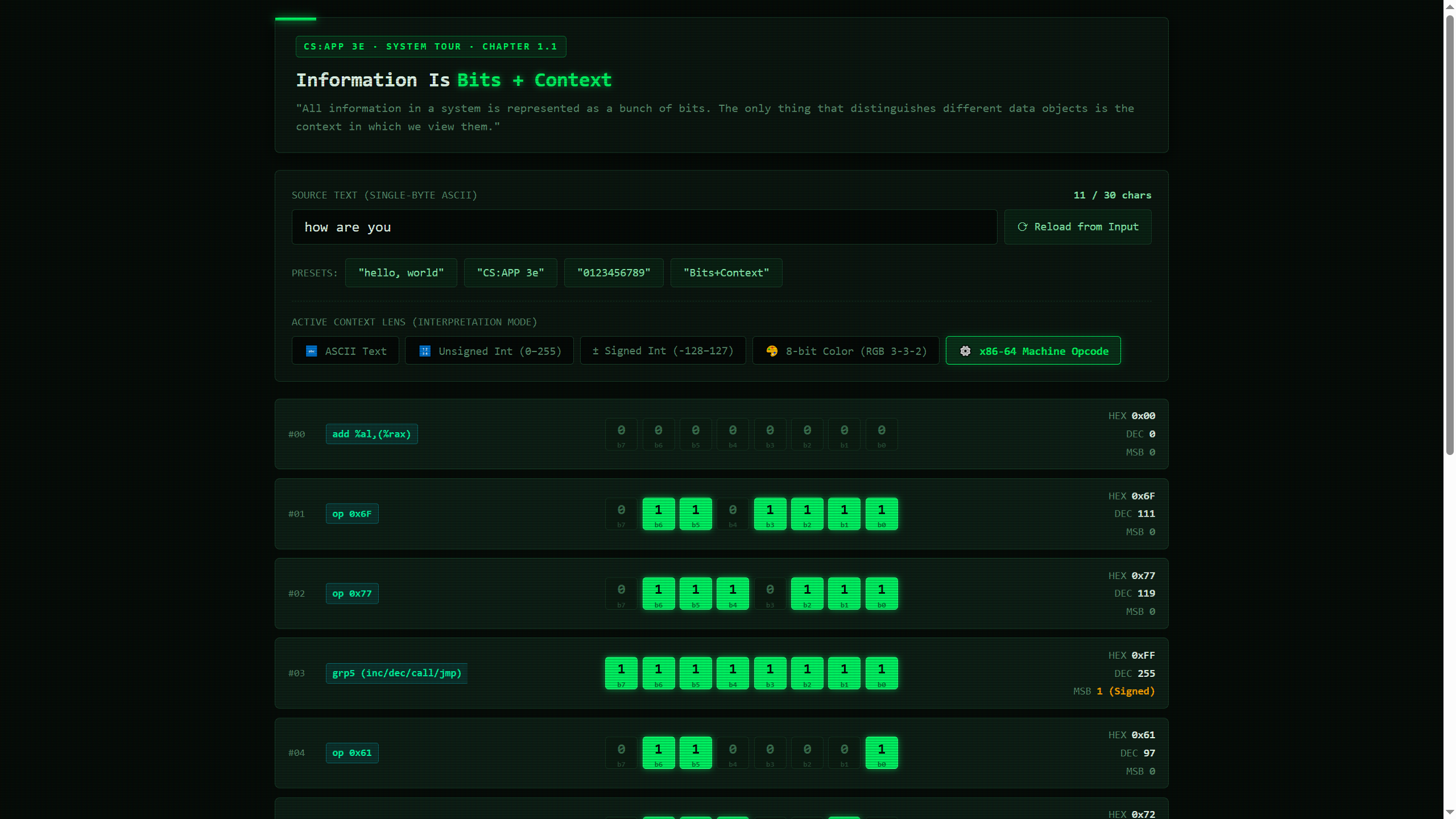

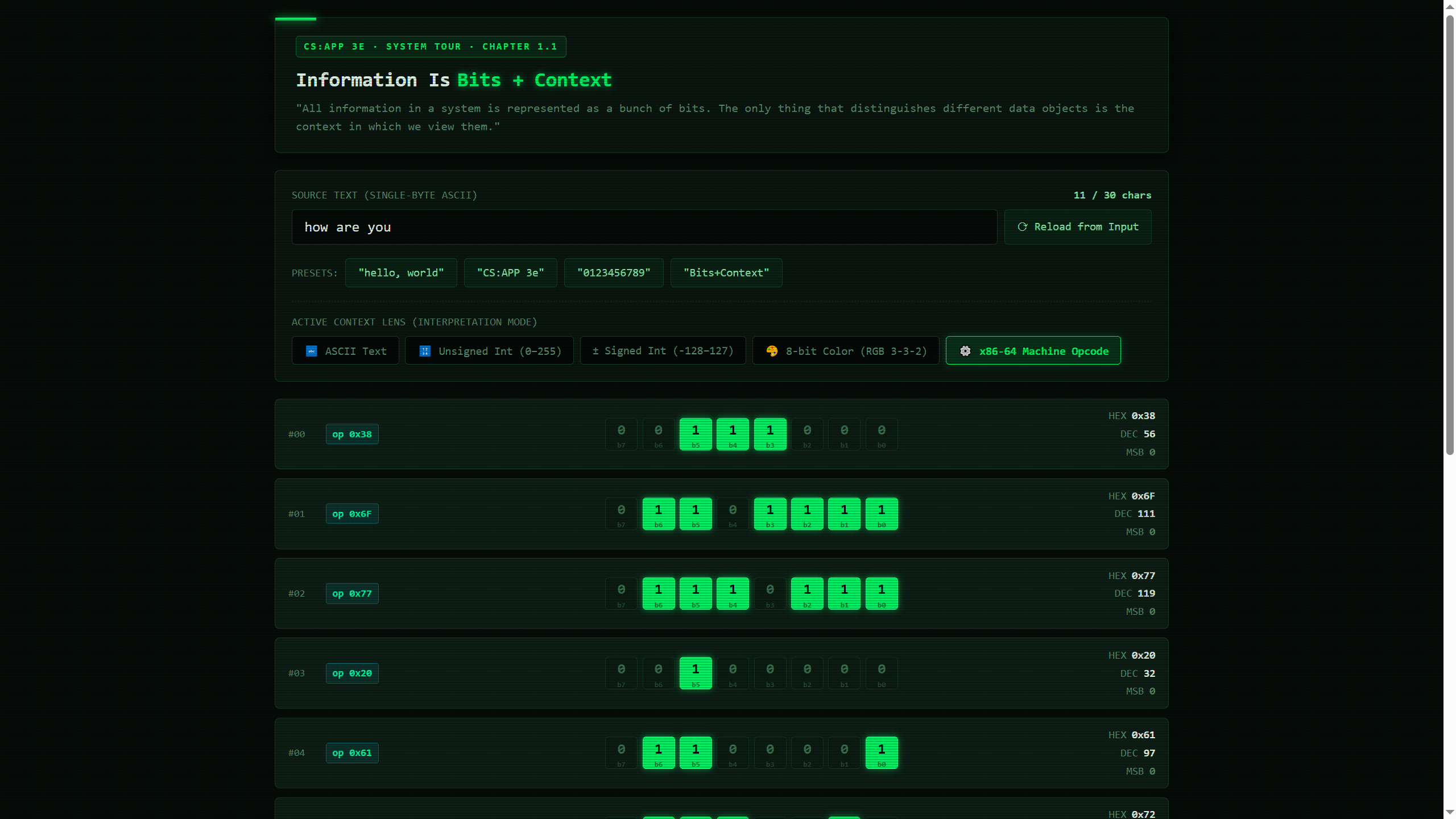

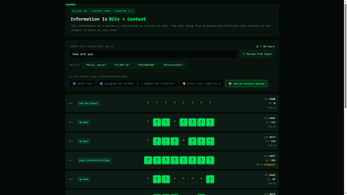

- x86-64 Machine Opcode: Disassembles the byte into single-byte processor machine instructions (such as
pushq,pop,nop, orretq), highlighting the bridge between memory bytes and CPU execution.
🕹️ Interactive Features
- Real-time Bit Flipping: Click any of the 8 binary digits (0s and 1s) to flip its value, watching all interpretations update instantly in real time.
- Synchronized ASCII Input: Type custom text strings or test curated presets (
"hello, world","CS:APP 3e","Bits+Context") to instantly inspect their byte arrays.
📚 Academic Reference
- Book: Computer Systems: A Programmer's Perspective (3rd Edition)
- Chapter: Chapter 1: A Tour of Computer Systems
- Section: 1.1 Information Is Bits + Context
